UCHDHUB-M1 | USB-C to 4K HDMI Multiport Adapter with USB-A & PD
产品型号： UCHDHUB-M1
The UCHDHUB-M1 USB 3.2 Type C to HDMI, USB & Power Delivery converter allows users to maximize the functionality of a single USB 3.2 Type C port by connecting and simultaneously using an HDMI display, a SuperSpeed USB device, and a USB Type C power supply for your MacBook, ultrabook, or notebook. The only requirement is that the computer supports DisplayPort Alternate Mode.
买家登录 — 查看价格、库存与订单记录
Incoterms® 2020 适用于所有 Tittron B2B 订单。
概述 — UCHDHUB-M1 | USB-C to 4K HDMI Multiport Adapter with USB-A & PD

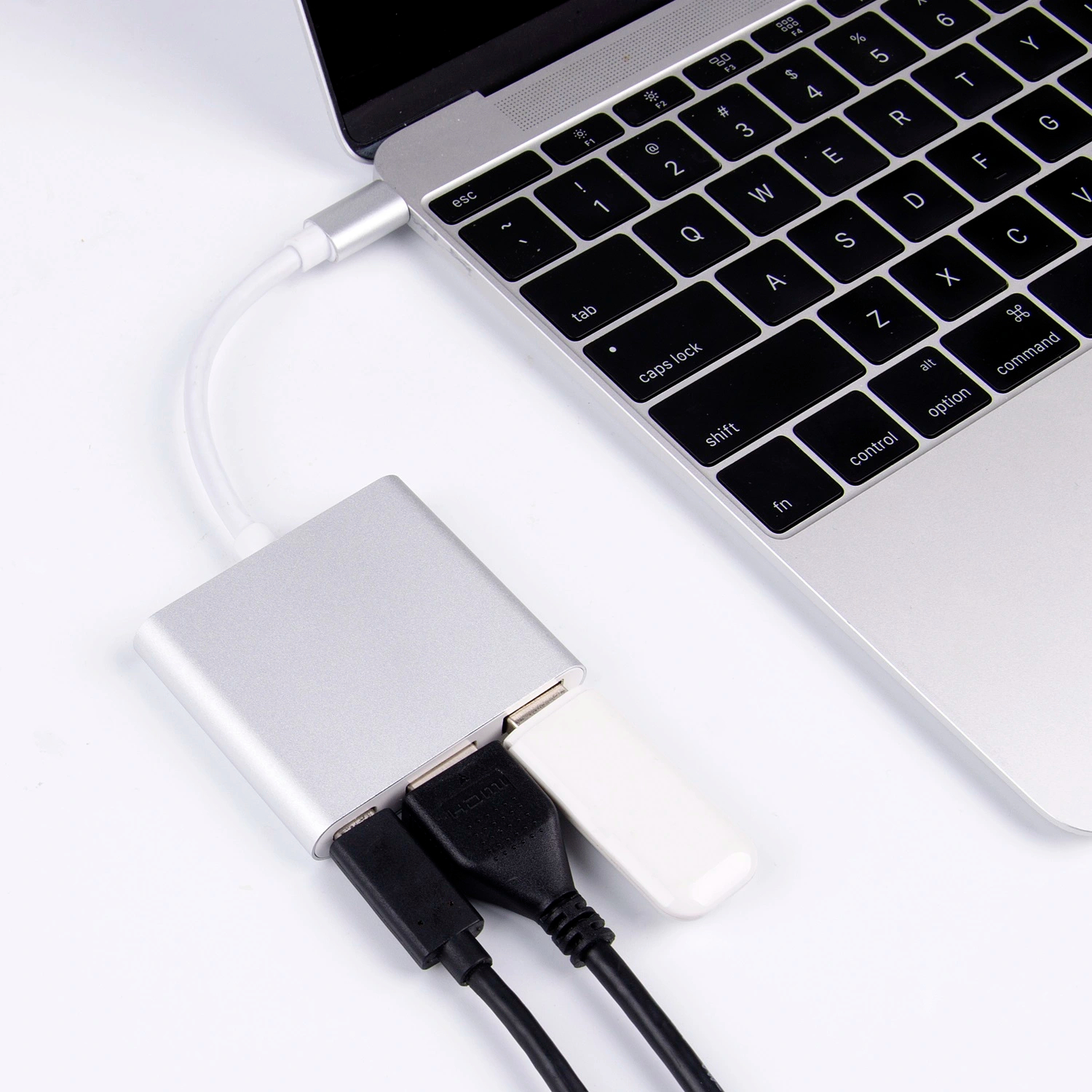

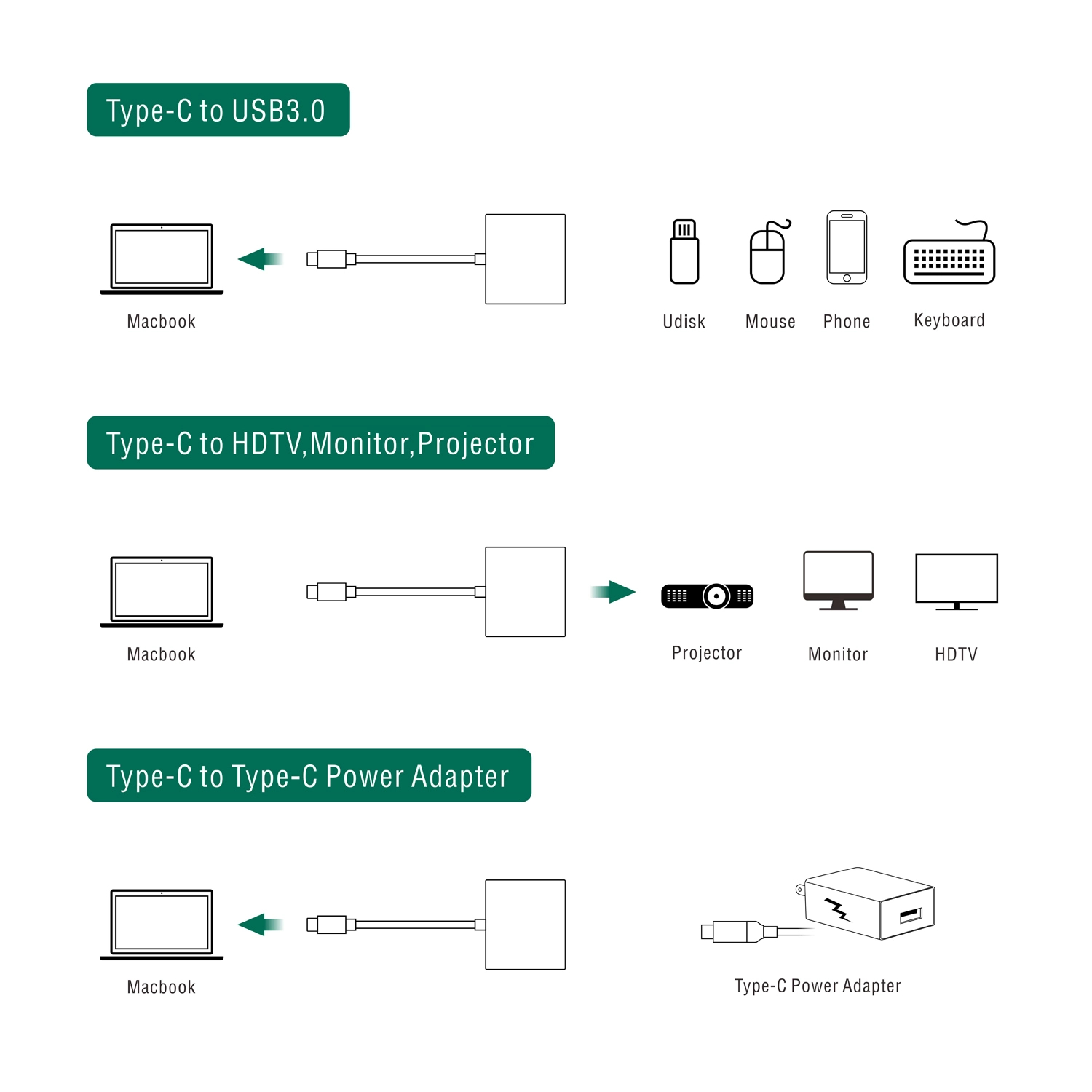

The UCHDHUB-M1 USB-C multiport adapter expands one USB 3.2 Type-C port to deliver HDMI video output, USB-A data connectivity and 100W USB-C Power Delivery passthrough. Connect your MacBook, ultrabook or notebook to an HDMI display and SuperSpeed USB peripherals simultaneously, while charging the host laptop. The host device must support DisplayPort Alternate Mode for video output.
Supporting 4K resolution up to 3840×2160 @30Hz, this plug-and-play adapter requires no driver installation and features a reversible Type-C connector for easy orientation. It is an ideal compact connectivity solution for designers, video editors and office professionals working with multi-screen setups.
产品亮点 — UCHDHUB-M1 | USB-C to 4K HDMI Multiport Adapter with USB-A & PD

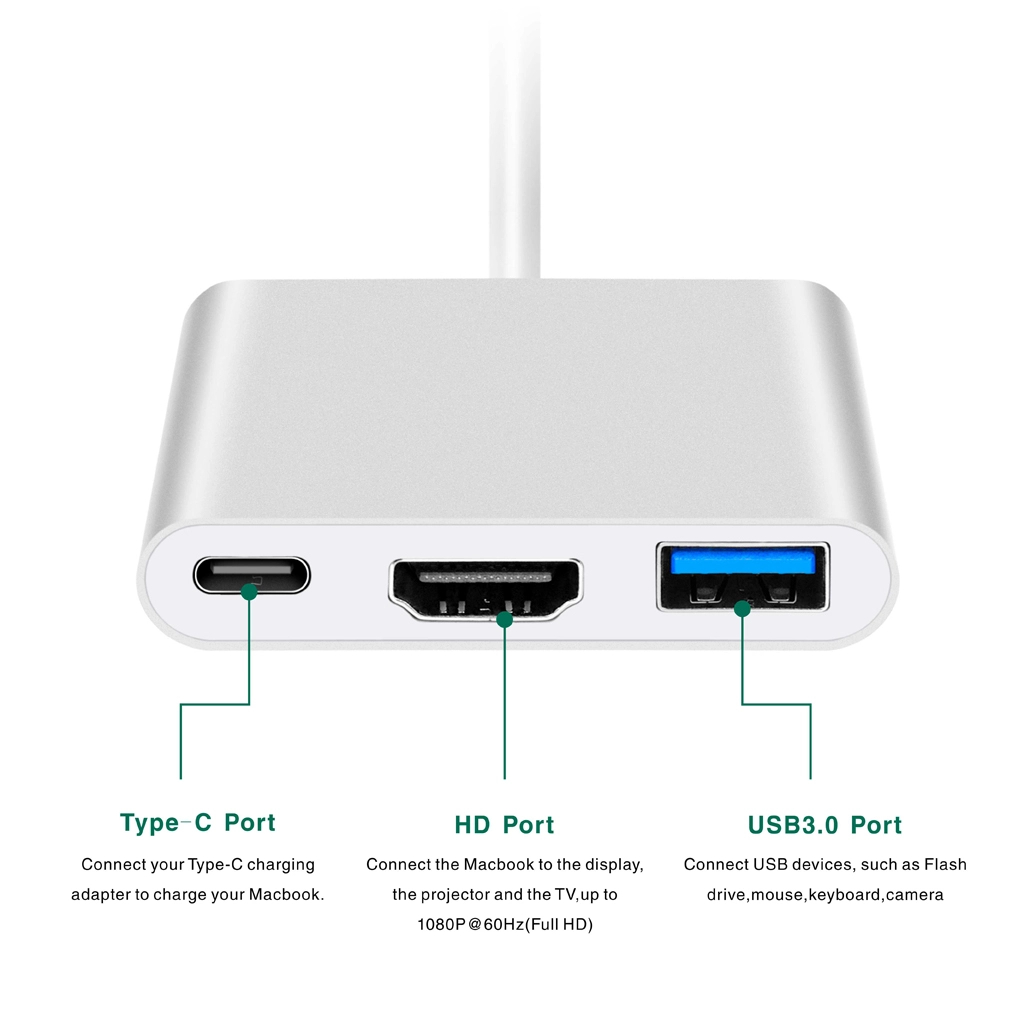

- ■ Adds an HDMI port, a USB Type A port and a Type C power supply port to your computer
- ■ Supports HDMI resolutions up to 4K 3840x2160@30Hz
- ■ Supports USB 3.2 / 3.1 Gen 1 / USB 3.0 standard (5Gbps)
- ■ Supports Power Delivery 3.0 up to 100W
技术规格 — UCHDHUB-M1 | USB-C to 4K HDMI Multiport Adapter with USB-A & PD
- AV Interface
- USB Type C to HDMI
- Supported Bandwidth
- HDMI 1.4 with 10.2Gbps
- Maximum Input Resolution
- 3840x2160@30Hz
- Maximum Output Resolution
- 3840x2160@30Hz
- Compatibility
- USB Type C/Thunderbolt equipped computers with DisplayPort Alternate Mode support (incl. Apple M based processors)
- Power Delivery
- PD 2.0 up to 100W (20V 5A)
- HDCP Support
- HDCP 1.4
- Supported Audio
- -
- Separate Audio Ports
- -
- Special Features
- DisplayPort Alternate Mode
- Connectors
- Inputs
- 1 x USB Type C (Male)
- Outputs
- 1 x HDMI® (Female), 1 x USB Type A (Female)
- Power
- Bus-powered
- Physical Properties
- Dimensions (approx.) WxDxH
- 75.5x38.4x15.3mm
- (Fixed) Cable Length
- 180mm
- Housing Material
- Metal
- Net Weight
- 0.042kg
- Operating Temperature
- -20°C - 40°C (-4°F - 104°F)
- Storage Temperature
- -40°C - 80°C (-40°F - 176°F)
- Humidity
- 5 - 90% RH ( non-condensing)
- Power Requirements
- -
- 质保
- 12 months
- 认证
- CE · FCC · RoHS
- OEM / ODM
- 支持
资料下载 — UCHDHUB-M1 | USB-C to 4K HDMI Multiport Adapter with USB-A & PD
Datasheets, drivers and firmware for this model are not published yet. Contact our team and we will send the files you need.
