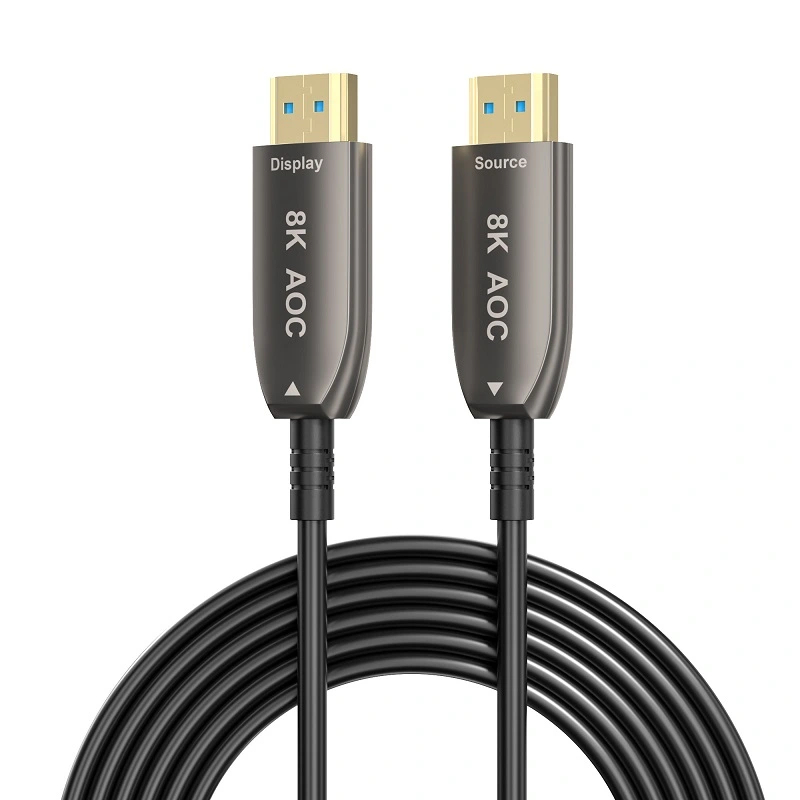

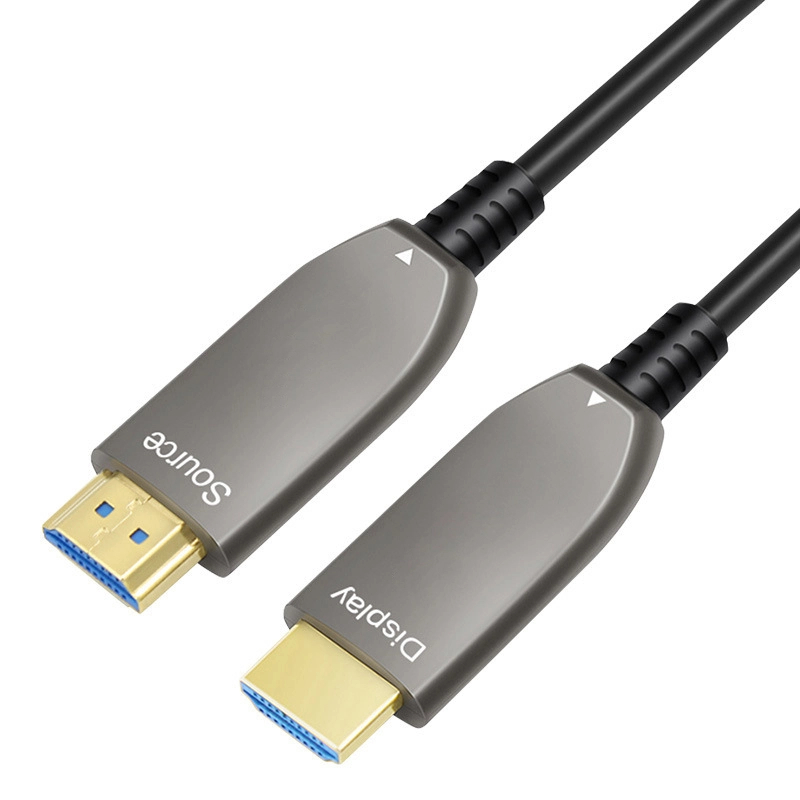

AOC-HD48G-15M | 15M 8K@60Hz Fibre Optic Hybrid HDMI Cable (Uni-Directional)
产品型号： AOC-HD48G-15M
The AOC-HD860 Series Fibre Optic Hybrid HDMI Cables enable long-distance, high-performance signal transmission beyond passive HDMI limits. Ideal for AV systems, digital signage, esports, and home setups, they feature a slim, flexible design with durable connectors. Supporting 8K@60Hz and 4K@120Hz with HDR (Dolby Vision, HDR10+), they deliver vivid visuals and smooth motion. VRR, ALLM, and QFT enhance responsiveness, while eARC supports up to 192kHz/32-channel lossless audio for immersive sound.
买家登录 — 查看价格、库存与订单记录
Incoterms® 2020 适用于所有 Tittron B2B 订单。
概述 — AOC-HD48G-15M | 15M 8K@60Hz Fibre Optic Hybrid HDMI Cable (Uni-Directional)
AOC-HD860 Series Fibre Optic Hybrid HDMI Cables are engineered for long-distance, high-performance HDMI signal transmission. They provide reliable, uncompressed signal delivery over distances beyond the capability of passive HDMI cables, making them ideal for commercial AV systems, digital signage, broadcasting, esports environments, and premium residential installations. Featuring a slim, flexible cable structure and durable metal connectors, they are easy to install through conduits and compact spaces. Supporting resolutions up to 4K@120Hz and 8K@60Hz (including 7680×4320 and 10240×4320), these cables deliver exceptional clarity, smooth motion, and precise detail. Compatibility with both static and dynamic HDR formats, including Dolby Vision and HDR10+, ensures a wider BT.2020 color gamut, higher peak brightness, deeper blacks, and enhanced contrast for more lifelike visual performance.
For gaming, movies, and fast-moving sports content, the cables support advanced HDMI features such as VRR (Variable Refresh Rate), ALLM (Auto Low Latency Mode), and QFT (Quick Frame Transport). VRR reduces lag, judder, and frame tearing for smoother gameplay, while ALLM automatically enables optimal low-latency settings. QFT further improves responsiveness by accelerating frame transport, making the cables well-suited for competitive gaming, real-time VR applications, and high-speed content distribution. These features also benefit sports bar distribution, medical imaging environments, experiential displays, and live broadcast systems. With eARC support, lossless high-bitrate audio up to 192kHz and 32 channels can be transmitted through a single cable, enabling immersive object-based formats such as Dolby Atmos and DTS:X. This ensures a fully integrated audiovisual experience for high-end home cinema systems, professional AV installations, and large-scale event environments.
产品亮点 — AOC-HD48G-15M | 15M 8K@60Hz Fibre Optic Hybrid HDMI Cable (Uni-Directional)
- ■ Supports up to 8K@60Hz (4:4:4, 8-bit) resolution
- ■ Supports Dynamic HDR
- ■ Supports eARC (Enhanced Audio Return Channel)
- ■ Up to 48Gbps HDMI data bandwidth
- ■ Compatible with HDCP 1.4 / 2.2 / 2.3
- ■ Directional design: TX (Source) for playback device, RX (Display) for monitor/display end
- Installation Notice
- 01. Test Before Installation: Test the product first. Install only after confirming normal display.
- 02. Check Direction: Source: Computer, PS4/PS5, Set-top box | Display: Monitor, TV, Projector
- 03. Gentle Handling: Pulling force must not exceed 20 kg.
- 04. Protect the Connector: Do not remove the dust cap. | Do not pull the connector.
技术规格 — AOC-HD48G-15M | 15M 8K@60Hz Fibre Optic Hybrid HDMI Cable (Uni-Directional)
- ■ Connector A
- TX – HDMI Type A (Male)
- ■ Connector B
- RX – HDMI Type A (Male)
- ■ Max. Resolution:
- 7680 × 4320 @60Hz (4
- 2:0, 10bit)
- 3840 × 2160 @120Hz (4
- 4:4, 10bit)
- ■ Supported Bandwidth
- 48Gbps
- ■ Housing Material
- Zinc Alloy
- ■ Connector Plating
- Gold Plated
- ■ Dimensions (Connector)
- Approx. 20.2 × 38 × 9 mm
- ■ Cable Length Options
- 5 / 10 / 15 / 20 / 25 / 30 / 40 / 50 m
- ■ Jacket Material
- PVC
- ■ Jacket Diameter
- 4.8 mm
- ■ Minimum Bend Radius
- 30 mm
- ■ Gross Weight:
- Product
- 410 g
- With Color Box
- 510 g
- 质保
- 12 months
- 认证
- CE · FCC · RoHS
- OEM / ODM
- 支持
资料下载 — AOC-HD48G-15M | 15M 8K@60Hz Fibre Optic Hybrid HDMI Cable (Uni-Directional)
Datasheets, drivers and firmware for this model are not published yet. Contact our team and we will send the files you need.
