UC2VGA-M1 | USB Type-C to VGA (Female) Converter
Product No.: UC2VGA-M1
UC2VGA-M1 compact USB-C to VGA female converter, supports up to 1920×1200@60Hz. Plug-and-play DP Alt Mode adapter for USB-C & Thunderbolt laptops including Apple M-series, bus-powered, no drivers required for VGA monitors & projectors.
Buyer login — pricing, stock and order history
Incoterms® 2020 Applies to all Tittron B2B orders.
Important Note
Your host USB‑C port must support DisplayPort Alternate Mode for video output. Data-only USB‑C ports will not work. Reverse conversion (VGA to USB‑C) is not supported.
Overview — UC2VGA-M1 | USB Type-C to VGA (Female) Converter

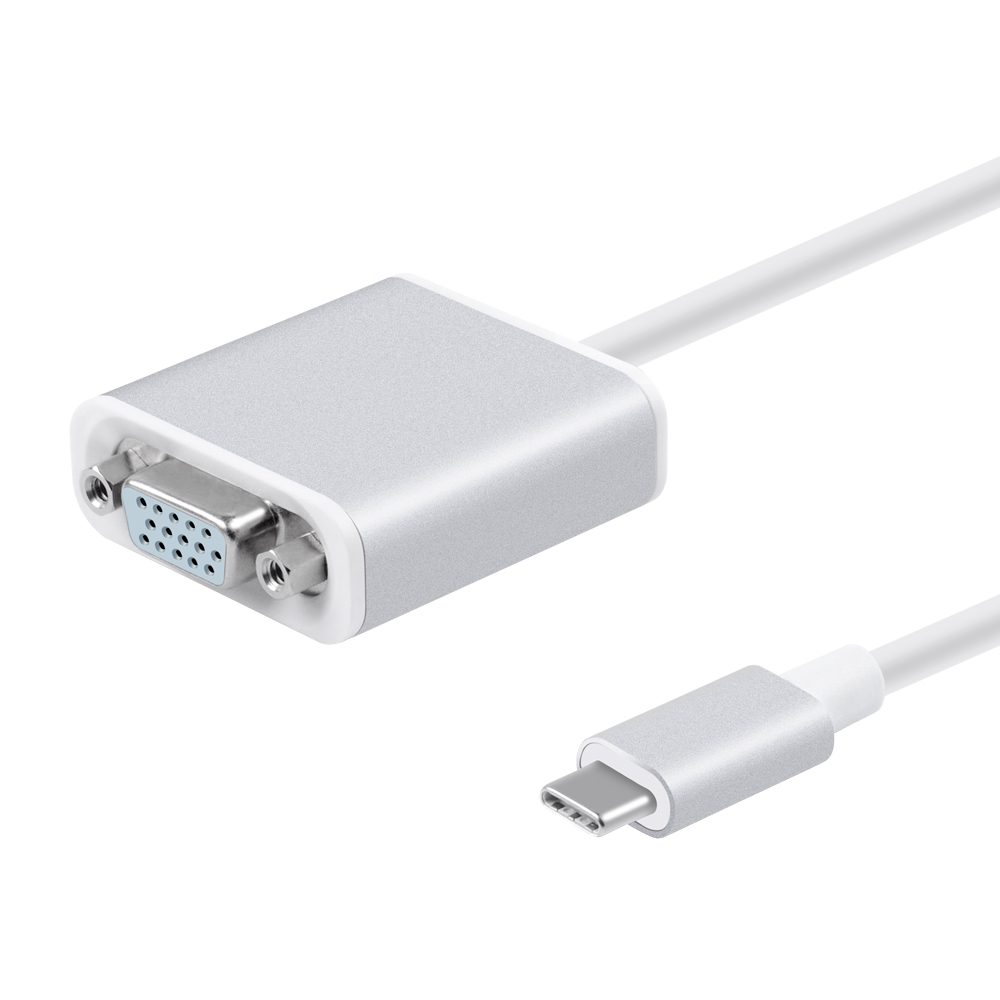

The UC2VGA-M1 is a compact USB Type‑C to VGA female converter designed to connect modern USB‑C or Thunderbolt laptops to legacy VGA monitors, projectors and displays. It operates via DisplayPort Alternate Mode and delivers video resolution up to 1920×1200 at 60Hz. This bus-powered adapter draws power directly from the host USB‑C port and needs no external power supply. It is true plug-and-play without driver installation, compatible with Windows, macOS and ChromeOS devices equipped with DP Alt Mode, including Apple M-series Mac computers.
What stands out — UC2VGA-M1 | USB Type-C to VGA (Female) Converter
- ■ Converts USB‑C to VGA port
- ■ Supports up to 1920×1200 60Hz
- ■ Requires USB‑C DisplayPort Alternate Mode on host device
- ■ Plug & Play, no drivers required
- ■ No reverse conversion (VGA to USB‑C not supported)
Technical specifications — UC2VGA-M1 | USB Type-C to VGA (Female) Converter
- Model
- UC2VGA-M1
- AV Interface
- USB Type C to VGA
- Interface Standard
- VGA
- Supported Bandwidth
- -
- Maximum Input Resolution
- 1920x1080@60Hz
- Maximum Output Resolution
- 1920x1080@60Hz
- Compatibility
- USB Type C/Thunderbolt equipped computers with DisplayPort Alternate Mode support (incl. Apple M based processors)
- Power Delivery
- -
- HDCP Support
- -
- Supported Audio
- -
- Separate Audio Ports
- -
- Special Features
- DisplayPort Alternate Mode
- Connectors
- Inputs
- 1 x USB Type C (Male)
- Outputs
- 1 x VGA (Female)
- Power
- Bus-powered
- Physical Properties
- Dimensions (approx.) WxDxH
- 45x45x15.2mm
- (Fixed) Cable Length
- 110mm
- Housing Material
- Metal
- Net Weight
- 0.028kg
- Operating Temperature
- 0°C - 40°C (32°F - 104°F)
- Storage Temperature
- -10°C - 60°C (14°F - 140°F)
- Humidity
- 10 - 85% RH (non-condensing)
- Power Requirements
- -
- Warranty
- 12 months
- Certification
- CE · FCC · RoHS
- OEM / ODM
- Supported
DOWNLOAD — UC2VGA-M1 | USB Type-C to VGA (Female) Converter
Datasheets, drivers and firmware for this model are not published yet. Contact our team and we will send the files you need.
GET A QUOTE
Frequently asked questions
Does the UC2VGA-M1 work with any USB-C port?
No. The host USB-C port must support DisplayPort Alternate Mode (DP Alt Mode). Data-only USB-C ports will not output video. Thunderbolt 3 and Thunderbolt 4 ports support DP Alt Mode, as do USB-C ports marked with a DisplayPort or monitor symbol.
Does the UC2VGA-M1 need drivers or an external power supply?
No. The adapter is bus-powered, drawing power directly from the host USB-C port, and is true plug-and-play with no driver installation required on Windows, macOS or ChromeOS.
Can the UC2VGA-M1 convert VGA to USB-C?
No. The UC2VGA-M1 is a one-way converter that takes a USB-C DP Alt Mode video source and outputs VGA. Reverse conversion from VGA to USB-C is not supported.
What is the maximum resolution of the UC2VGA-M1?
Up to 1920×1200 at 60Hz over DisplayPort Alternate Mode.
Is the UC2VGA-M1 compatible with Apple M-series Macs?
Yes. It works with USB-C and Thunderbolt computers that support DP Alt Mode, including Apple M-series Mac computers, as well as Windows and ChromeOS devices.
