UCHD460-M1 | USB Type C to HDMI (Female) 4K/60 Converter
Product No.: UCHD460-M1
UCHD460-M1 compact USB-C to HDMI metal adapter, supports up to 4K@60Hz. Plug-and-play DP Alt Mode converter for USB-C & Thunderbolt laptops including Apple M-series, bus-powered, no drivers required.
Buyer login — pricing, stock and order history
Incoterms® 2020 Applies to all Tittron B2B orders.
Overview — UCHD460-M1 | USB Type C to HDMI (Female) 4K/60 Converter

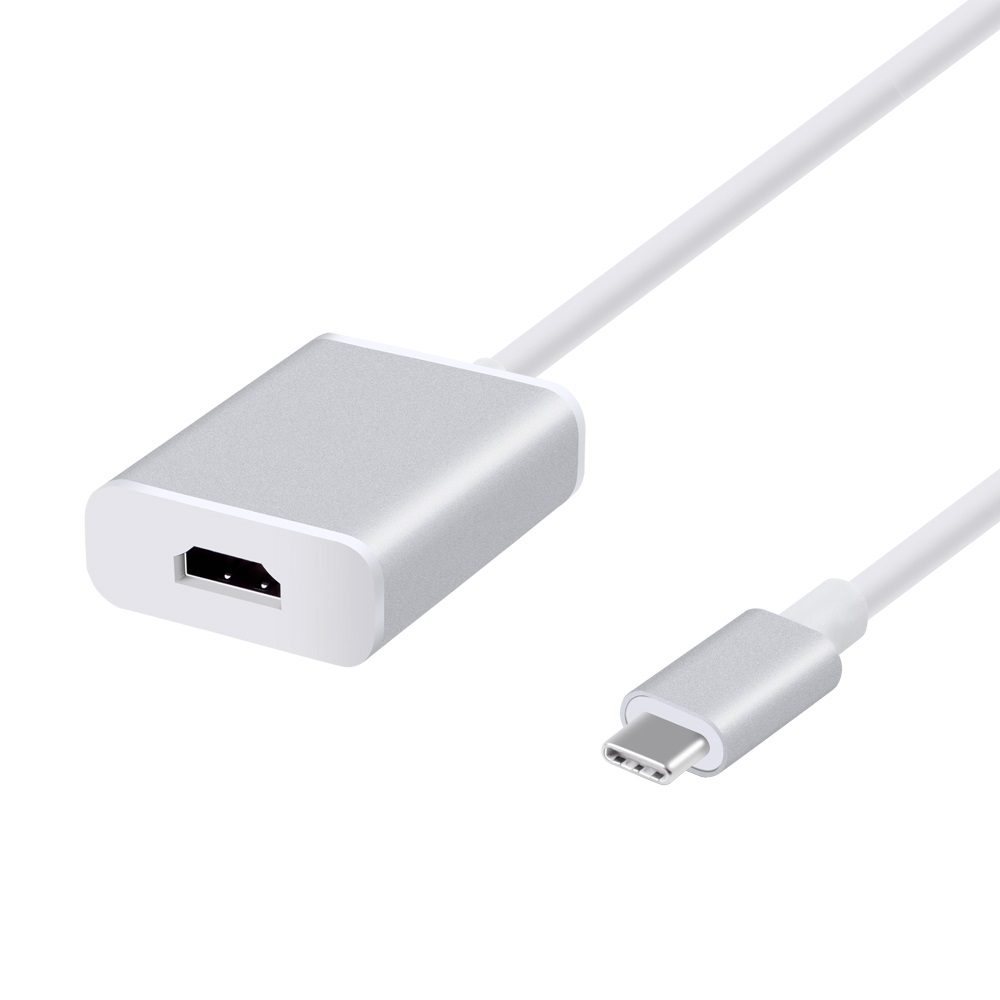

The UCHD460-M1 is a premium metal USB Type‑C to HDMI adapter designed to connect modern USB‑C or Thunderbolt laptops to HDMI monitors, TVs and projectors. It operates via DisplayPort Alternate Mode and delivers video resolution up to 4K@60Hz. This bus-powered adapter draws power directly from the host USB‑C port and needs no external power supply. It is true plug-and-play without driver installation, compatible with Windows, macOS and ChromeOS devices equipped with DP Alt Mode, including Apple M-series Mac computers.
Important Note: Your host USB‑C port must support DisplayPort Alternate Mode for video output. Data-only USB‑C ports will not work. Reverse conversion (HDMI to USB‑C) is not supported.
What stands out — UCHD460-M1 | USB Type C to HDMI (Female) 4K/60 Converter
- ■ Converts USB‑C to HDMI port
- ■ Supports up to 4K@60Hz
- ■ Requires USB‑C DisplayPort Alternate Mode on host device
- ■ Plug & Play, no drivers required
- ■ Durable metal housing
- ■ No reverse conversion (HDMI to USB‑C not supported)
Technical specifications — UCHD460-M1 | USB Type C to HDMI (Female) 4K/60 Converter
- Model
- UCHD460-M1
- AV Interface
- USB Type C to HDMI
- Supported Bandwidth
- HDMI 2.0 with 18Gbps
- Maximum Input Resolution
- 3840x2160@60Hz 12bit 4:2:2 HDR
- Maximum Output Resolution
- 3840x2160@60Hz 12bit 4:2:2 HDR
- Compatibility
- USB Type C/Thunderbolt equipped computers with DisplayPort Alternate Mode support (incl. Apple M based processors)
- Power Delivery
- -
- HDCP Support
- HDCP 1.4 & 2.2
- Supported Audio
- -
- Separate Audio Ports
- -
- Special Features
- DisplayPort Alternate Mode
- Connectors
- Inputs
- 1 x USB Type C (Male)
- Outputs
- 1 x HDMI (Female)
- Power
- Bus-powered
- Physical Properties
- Dimensions (approx.) WxDxH
- 45x45x15mm
- (Fixed) Cable Length
- 100mm
- Housing Material
- Metal
- Net Weight
- 0.023kg (0.05lb)
- Operating Temperature
- 0°C - 45°C (32°F - 113°F)
- Storage Temperature
- -10°C - 70°C (14°F - 158°F)
- Humidity
- 10 - 85% RH (non-condensing)
- Power Requirements
- -
- Warranty
- 12 months
- Certification
- CE · FCC · RoHS
- OEM / ODM
- Supported
DOWNLOAD — UCHD460-M1 | USB Type C to HDMI (Female) 4K/60 Converter
Datasheets, drivers and firmware for this model are not published yet. Contact our team and we will send the files you need.
