DP2HD8K-A-P1 | DisplayPort to HDMI 4K120Hz Adapter
Product No.: DP2HD8K-A-P1
DP2HD8K-A-P1 is an active DisplayPort 1.4 to HDMI converter supporting 4K@120Hz HDR and up to 8K@60Hz on NVIDIA GPUs. Compatible with AMD Eyefinity, NVIDIA Surround and Intel Collage, ideal for gaming, streaming and multi-monitor video editing workstations. Requires DSC v1.2a and Ultra High Speed HDMI cables for best performance.
Buyer login — pricing, stock and order history
Incoterms® 2020 Applies to all Tittron B2B orders.
Overview — DP2HD8K-A-P1 | DisplayPort to HDMI 4K120Hz Adapter

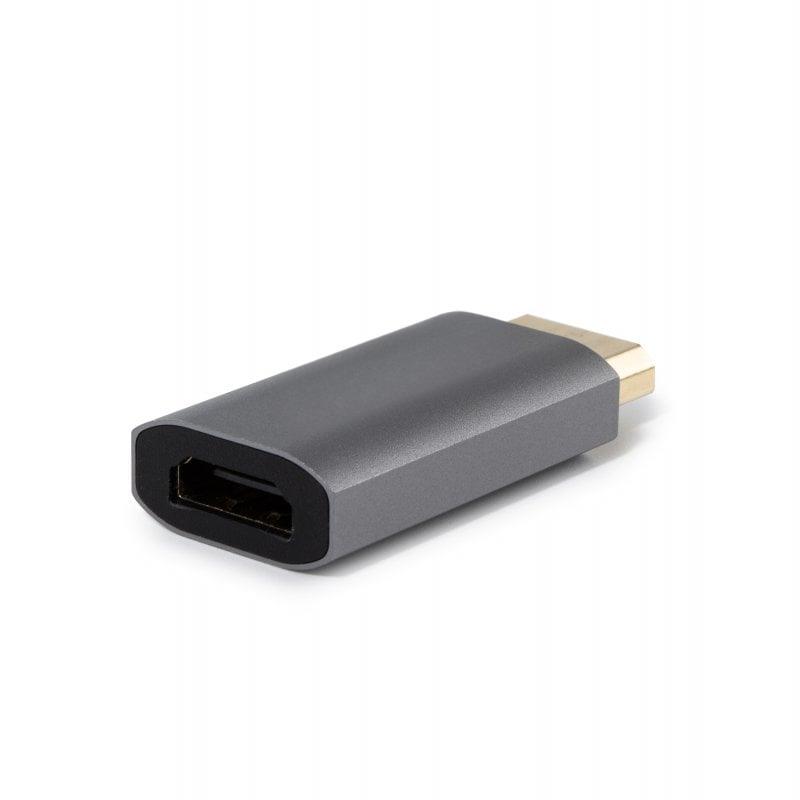

The DP2HD8K-A-P1 DisplayPort 1.4 to HDMI® 4K120Hz active converter delivers high-performance signal conversion, converting DisplayPort 1.4 signals to HDMI output with resolutions up to 3840×2160@120Hz. Ideal for high-resolution, high-refresh-rate game streaming and professional 4K video editing workflows. It supports High Dynamic Range (HDR), delivering enhanced brightness, deeper contrast and a wider colour gamut for realistic, lifelike visuals. For optimal performance, Ultra High Speed HDMI® cables are recommended.
This active DP1.4 to HDMI converter ensures broad graphics card compatibility, including AMD Eyefinity, NVIDIA Surround and Intel Collage. Perfect for immersive gaming environments and productive multi-monitor workstation setups.
Please update your graphics drivers and confirm your hardware supports DSC v1.2a. The DP2HD8K-A-P1 converter supports up to 8K@60Hz when used with NVIDIA graphics cards.
What stands out — DP2HD8K-A-P1 | DisplayPort to HDMI 4K120Hz Adapter
- ■ Connects a DisplayPort 1.4 computer to an HDMI® 4K120Hz Display
- ■ Supports resolutions up to 7680x4320@60Hz and 3840x2160@120Hz
- ■ Audio pass-through if supported by the video source
- ■ Active chipset for enhanced compatibility with various graphic cards
Technical specifications — DP2HD8K-A-P1 | DisplayPort to HDMI 4K120Hz Adapter
- Model
- DP2HD8K-A-P1
- AV Interface
- DisplayPort to HDMI
- Interface Standard
- DisplayPort 1.4, HDMI® 2.1
- Supported Bandwidth
- 48Gbps
- Maximum Output Resolution
- 7680x4320@60Hz and 3840x2160@120Hz
- Supported Resolutions
- 7680x4320 60Hz, 3840x2160 144/120Hz, 2560x1440 230/165/144Hz, 1920x1080p 240Hz
- HDCP Support
- HDCP 2.2
- Supported Audio
- Pass-through
- Special Features
- HDR support, DSC v1.2a support
- Input
- DisplayPort Male
- Output
- HDMI® Type A Female
- Dimensions (approx.) WxDxH
- 20mm x 10mm x 40.2mm
- Cable Length
- In-Line
- Housing Material
- Aluminium
- Net Weight
- 14.8g
- Operating Temperature
- 0°C - 40°C
- Storage Temperature
- -40°C - 80°C
- Humidity
- 0 - 85% RH (non-condensing)
- Warranty
- 12 months
- Certification
- CE · FCC · RoHS
- OEM / ODM
- Supported
DOWNLOAD — DP2HD8K-A-P1 | DisplayPort to HDMI 4K120Hz Adapter
Datasheets, drivers and firmware for this model are not published yet. Contact our team and we will send the files you need.
