UHOST-A | Stand-alone USB Host MIDI Interface Box (Metal, 5-PIN DIN)
No.UHOST-A

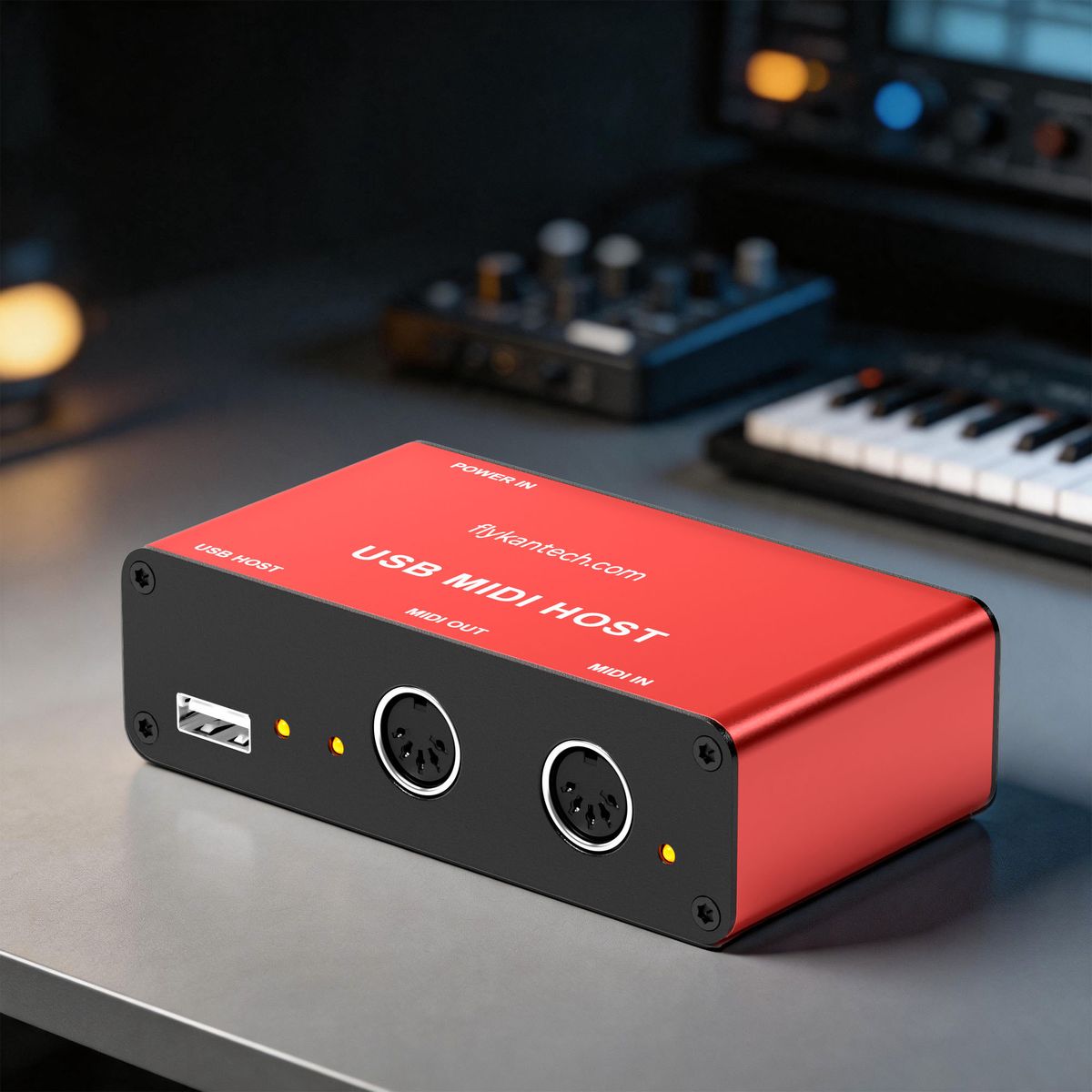

Tittron UHOST-A USB Host MIDI Interface Box is a USB MIDI to 5‑pin DIN MIDI bridge. Convert USB-A MIDI controller signals to legacy MIDI for synthesizers, drum machines and sound modules. Metal housing, USB Type‑B power-only input, with status, MIDI IN & OUT LED indicators for studio and live rigs.
تسجيل دخول المشتري — الأسعار والمخزون وسجل الطلبات
Incoterms® 2020 تنطبق على جميع طلبات Tittron للشركات.
Important Notes
For TS/TRS to 5‑pin DIN MIDI conversion, confirm your TS/TRS MIDI is Type A or Type B. The two standards have different pinouts. Mismatch leads to no MIDI signal.
نظرة عامة — UHOST-A | Stand-alone USB Host MIDI Interface Box (Metal, 5-PIN DIN)

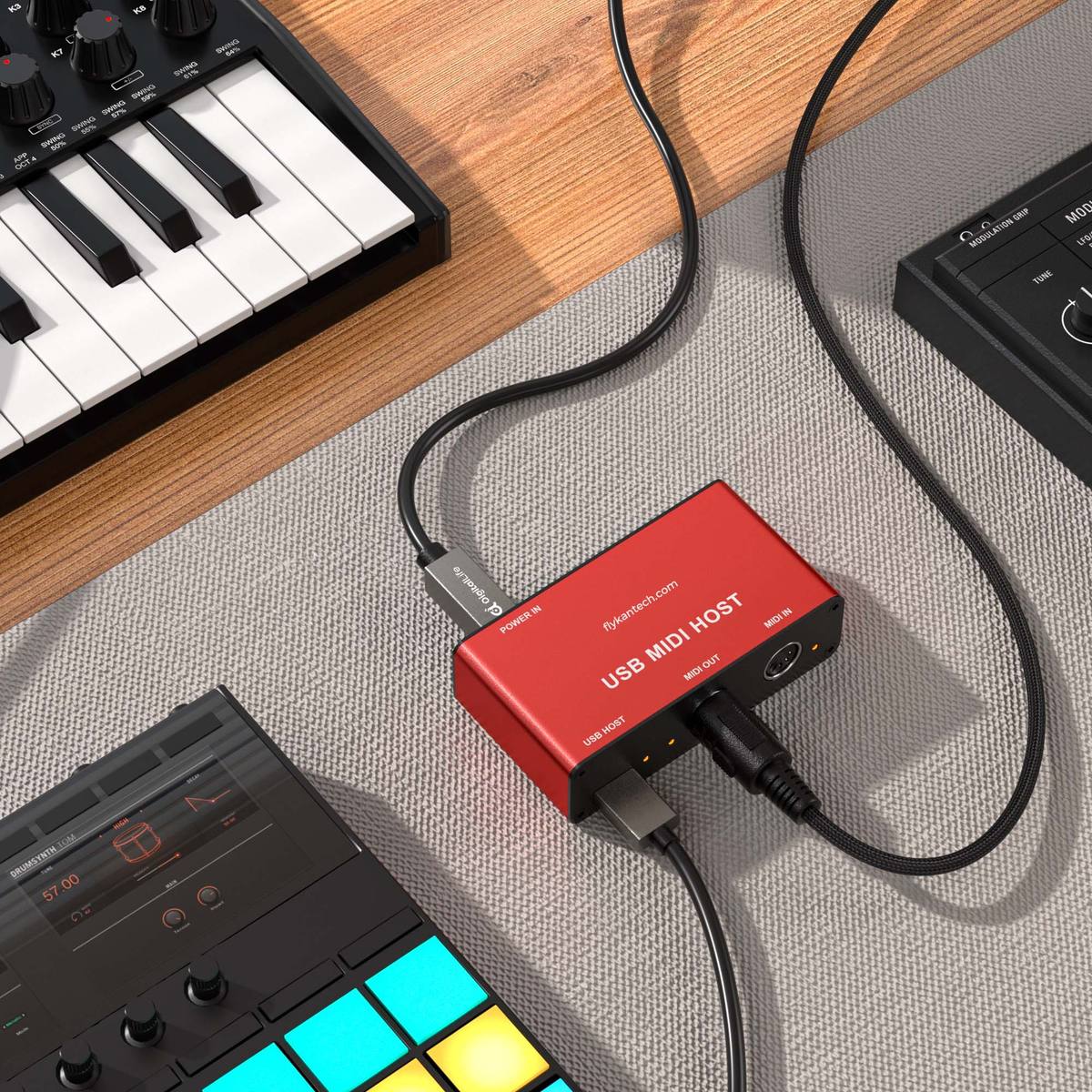

Tittron UHOST-A USB Host MIDI Interface Box acts as a reliable USB MIDI to 5‑pin DIN MIDI bridge. It converts signals from USB‑A MIDI controllers and keyboards into traditional 5-pin DIN MIDI signals, allowing you to connect modern USB MIDI gear to legacy MIDI instruments such as synthesizers, sound modules and drum machines. This unit helps integrate mixed USB and classic MIDI equipment for seamless studio and live performance rigs.
Built with a durable metal housing, the adapter features a dedicated USB Type‑B port for power supply only, with no data transfer function. Visual monitoring is supported via LEDs: a status LED lights up when the host successfully identifies your USB MIDI device, plus separate MIDI IN and MIDI OUT indicator lights to track MIDI signal activity. Its compact form factor packs 1×USB Host port alongside MIDI IN / MIDI OUT, giving you a tidy solution to bridge different generations of MIDI hardware.
أبرز المزايا — UHOST-A | Stand-alone USB Host MIDI Interface Box (Metal, 5-PIN DIN)
- ■ Connect USB-A MIDI controllers to legacy 5-pin DIN MIDI gear
- ■ Unify mixed USB / 5‑pin MIDI studio and live rig setups
- ■ Compact design with 1×USB Host, MIDI IN / MIDI OUT ports
- ■ Durable metal housing
- ■ USB Type‑B port for power supply only (no data signal)
- ■ Status LED illuminates once the USB-MIDI host detects connected USB MIDI hardware
- ■ Independent LED indicators for MIDI IN and MIDI OUT signal monitoring
المواصفات الفنية — UHOST-A | Stand-alone USB Host MIDI Interface Box (Metal, 5-PIN DIN)
- Connector(s)
- Ports
- 1 × USB-A Host
- Ports
- MIDI IN (5-pin DIN)
- Ports
- MIDI OUT (5-pin DIN)
- Ports
- USB Type-B (Power only, no data signal)
- Performance
- Supported MIDI Signal Routing
- 1. USB Type-A + 5-PIN DIN (IN) → 5-PIN DIN (OUT)
- Supported MIDI Signal Routing
- 2. 5-PIN DIN (IN) → 5-PIN DIN (OUT) + USB Type-A
- Indicators
- Status LED
- Illuminates when USB MIDI device is recognized
- MIDI IN LED
- Yes
- MIDI OUT LED
- Yes
- Physical Characteristics
- Housing
- Metal
- الضمان
- 24 months
- الشهادات
- CE · FCC · RoHS
- OEM / ODM
- مدعوم
التنزيل — UHOST-A | Stand-alone USB Host MIDI Interface Box (Metal, 5-PIN DIN)
لم يتم بعد نشر أوراق البيانات والتعريفات والبرامج الثابتة لهذا الطراز. تواصل مع فريقنا وسنرسل لك الملفات التي تحتاجها.
احصل على عرض سعر
الأسئلة الشائعة
What is the UHOST-A used for?
The Tittron UHOST-A works as a USB MIDI to 5‑pin DIN MIDI bridge. It converts signals from USB-A MIDI controllers and keyboards into traditional 5-pin DIN MIDI signals, so you can connect modern USB MIDI gear to legacy MIDI instruments like synthesizers, sound modules and drum machines.
Does the USB Type‑B port transfer MIDI data?
No. The USB Type-B port is for power supply only. It does not transmit any data or MIDI signals.
What do the LED lights indicate?
The Status LED turns on when the unit successfully recognizes a connected USB MIDI device. The MIDI IN and MIDI OUT LEDs flash separately to show incoming and outgoing MIDI signal activity.
Can I use this for both studio work and live performance?
Yes. It is designed for mixed USB and 5-pin DIN MIDI setups, suitable for home studio production as well as live stage rigs.
What MIDI devices can I connect to the USB-A host port?
It supports standard USB-A MIDI controllers and MIDI keyboards.
Is the housing made of metal?
Yes, it adopts a sturdy metal housing for better durability.
Do I need an external power supply?
Yes, power must be supplied through the USB Type‑B power-only port to make the UHOST-A function.
Can multiple USB MIDI devices be connected at the same time via a USB hub?
No. The USB-A host port only supports connecting one USB MIDI device directly. USB hubs are not supported.
Is this device plug-and-play? Do I need to install drivers?
Driver-free, plug-and-play. No extra software or driver installation is required.
Can I use it in reverse? Convert 5-pin DIN MIDI to USB MIDI signal?
No. Signal direction is fixed. It only converts USB-A MIDI input to 5-pin DIN MIDI output, reverse conversion is not supported.
What is the MIDI IN port used for?
The MIDI IN port receives MIDI signals from legacy 5-pin DIN MIDI devices and passes the data back to your connected USB MIDI controller. It supports bidirectional MIDI communication.
