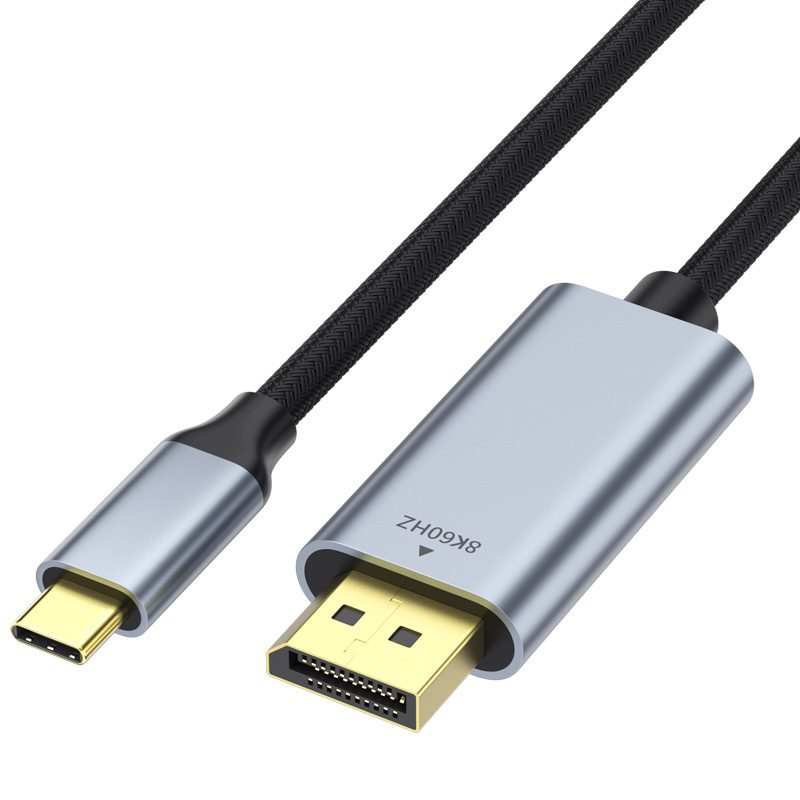

UC2DP860-18-M2 | 8K@60Hz USB-C to DisplayPort 1.4 Cable, M/M 1.8m

Name: UC2DP860-18-M2 | 8K@60Hz USB-C to DisplayPort 1.4 Cable, M/M 1.8m
Brand: Tittron
SKU: UC2DP860-18-M2

Product No.: UC2DP860-18-M2

The UC2DP860-18-M2 DP1.4 adapter cable brings crisp 8K@60Hz video and audio from DP Alt Mode USB‑C / Thunderbolt 3/4 devices to your DisplayPort display. It adopts a sturdy metal shell for better shielding, paired with a flexible 1.8m cable. Backward compatible with 4K and 1080P, it fits most monitors. Plug and play, unidirectional for video & audio signal only; it does not support power charging or data transfer.

GET A QUOTE Online Catalog

Buyer login — pricing, stock and order history

Incoterms® 2020 Applies to all Tittron B2B orders.

The UC2DP860-18-M2 is an 8K USB‑C to DisplayPort adapter built to deliver DP video and audio output from USB‑C equipped devices. Compatible with MacBook Pro, Chromebook, 2018 iPad Pro and other hosts that carry a native DisplayPort Alt Mode signal, this DP 1.4 adapter unlocks true ultra-high-definition visuals on your 8K 60Hz display. It taps the video bandwidth of your USB‑C port to bring crisp UHD quality, enriching media playback and supporting smooth multitasking even under heavy workloads. Capable of outputting up to 7680×4320@60Hz, it goes far beyond standard 4K performance for 8K video viewing and high-resolution creative work, while maintaining backward compatibility with 1080p screens to suit home, office and studio setups.

Engineered for lasting reliability and forward compatibility, this adapter adopts a premium metal shell for robust shielding and protection. The 1.8m cable offers convenient routing and flexible placement with zero signal degradation. Future-ready for next-gen high-resolution displays, it helps you upgrade your workstation and boost productivity. Add this must-have connectivity accessory to your setup and bring your display performance to a whole new level.

Important Notes:
■ Your USB‑C port must support DP Alt Mode. 8K@60Hz requires DP 1.4 + DSC on source, adapter and display; 8K@30Hz without DSC. It is one-way: USB‑C to DP only, not reversible.
■ Connect directly to your device. Do not pass through uncertified hubs. This adapter carries only video & audio, no PD charging or USB data. Mild warmth on the metal housing during use is normal.

■ A conversion adapter for computers with USB Type‑C output port supporting DisplayPort Alt Mode to connect to monitors and TVs with DisplayPort input port.
■ Connects USB Type‑C port supporting "DisplayPort Alternate Mode (hereinafter referred to as DP Alt mode)" and converts the signal into DisplayPort video signal.
■ Supports 8K60Hz (compliant with DisplayPort Ver.1.4 standard)
■ It can output up to 8K/60Hz resolution if the computer graphics card is capable.
■ ※The computer host, DisplayPort cable and monitor must all support 8K/60Hz.
■ The external display can be set as extended screen for large-screen workspace; mirror mode is also available for presentation with projectors.
■ Driver-free, plug and play.
■ Supports digital audio output via USB Type‑C port with DisplayPort Alt Mode (prerequisite: both computer host and monitor support audio input and output).
■ No power adapter required, powered by the Type‑C bus.

Connector Type (PC Side): USB Type‑C
Power Supply: Bus-powered
Port Type: 1 × DisplayPort Female

Supported Resolution:
Up to 8K/60Hz (7680×4320@60Hz)
※ Requires host PC with DP Ver.1.4 and DSC support
Up to 8K/30Hz (7680×4320@30Hz)
※ For host PC with DP Ver.1.4 and no DSC support Up to 4K/60Hz
※ For host PC with DP Ver.1.2
Maximum Supported Resolution: 8K/60Hz
Connector Configuration: USB Type‑C Male to DisplayPort Female
Cable Length: Approx. 1.8m
Cable Diameter: Approx. 4.8 mm
Materials: Cable jacket / PVC; Connector housing / ABS + PC
Dimensions (Female Connector): Approx. W35.6 × D70.6 × H11.5 mm
Weight: Approx. 27 g

DisplayPort Alt Mode
DisplayPort Alternate Mode (Alt Mode) is a newly standardized extension specification that enables DisplayPort transmission over the USB Type‑C connector. By using devices and cables compliant with this specification and supporting USB 3.2 (USB3.1/3.0), DisplayPort signals at 4K resolution or higher, USB 3.2 (USB3.1/3.0) data signals, and power can all be transmitted via a single cable.
