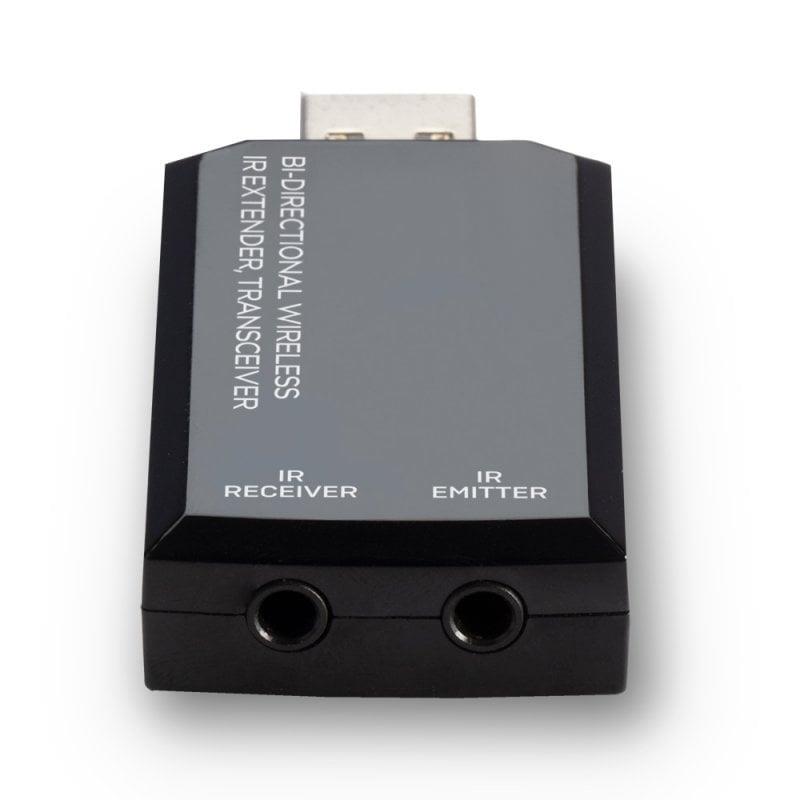

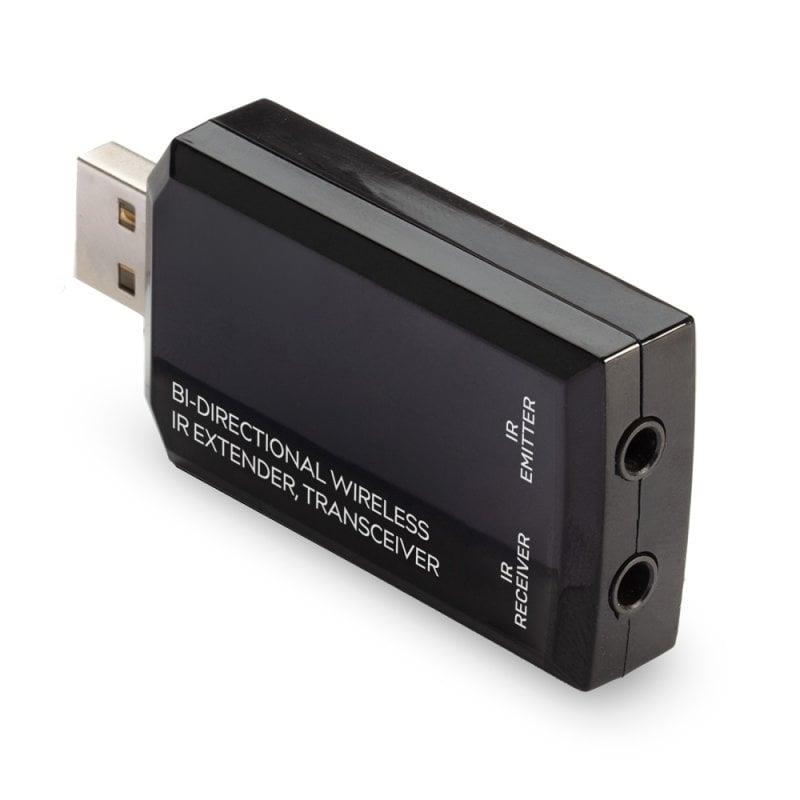

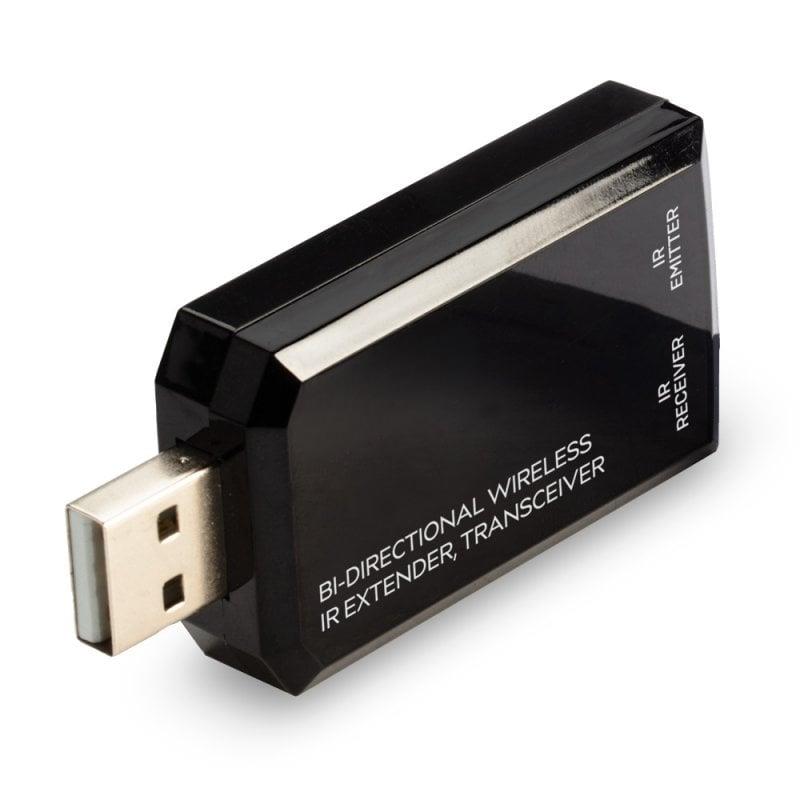

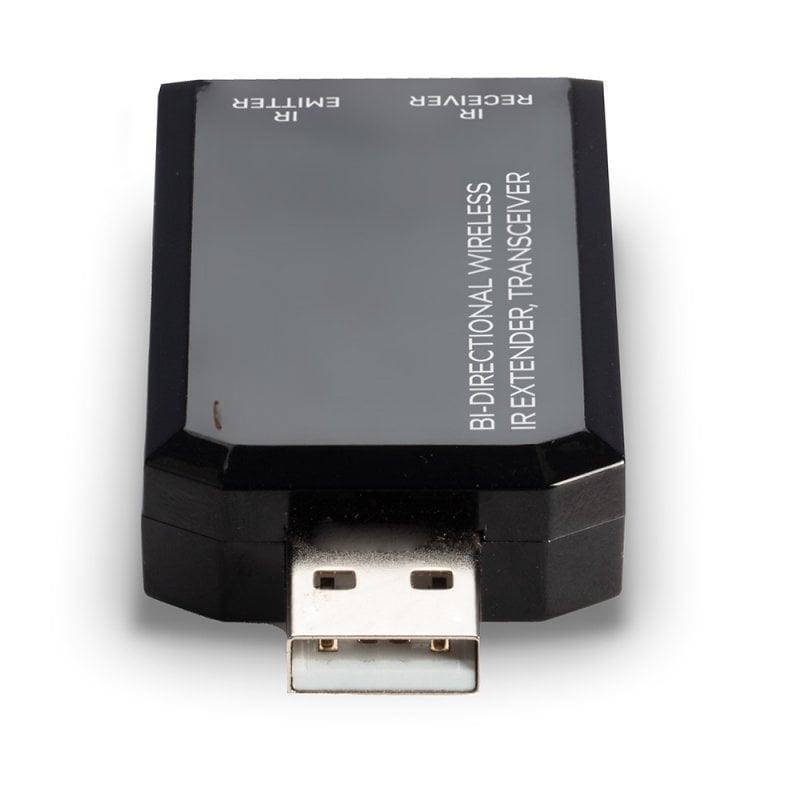

IRX-BI150 | Bi-directional Wireless IR Extender, Transceiver
Product No.: IRX-BI150
This 150m bi-directional IR signal extender wirelessly relays infrared remote signals through walls up to 150m open range. USB-powered and compact, it supports adjustable RF channels for anti-interference and flexible one-to-one/multi-device setups. Works with Alexa, Google Home and Logitech Harmony for smart voice control of your AV equipment.
Buyer login — pricing, stock and order history
Incoterms® 2020 Applies to all Tittron B2B orders.
Overview — IRX-BI150 | Bi-directional Wireless IR Extender, Transceiver
The 150m Bi-Directional IR Signal Extender delivers high-quality, reliable transmission of infrared remote control signals up to 150 meters in open space. It enables convenient remote operation of AV devices across walls and ceilings for home, office and retail scenarios, removing the need for costly hardwiring. Powered via USB, each transceiver features low power draw and a compact form factor for simple, unobtrusive professional installations. It comes with a rotary dial to select an available RF channel to avoid interference from other IR devices or run multiple sets in the same space, easily supporting one-to-one, one-to-many and many-to-many bi-directional IR systems.
Compatible with Alexa, Google Home and Logitech Harmony, this extender integrates smoothly with existing home automation products. Users can send commands to supported AV devices via voice control to build a complete smart-home experience.
Note: One transceiver unit included. Actual transmission range varies depending on building materials and obstructions such as walls or floors between transceivers.
What stands out — IRX-BI150 | Bi-directional Wireless IR Extender, Transceiver
- ■ Extends bi-directional IR signals up to 150m
- ■ Use 2 or more transceivers to create one to one, one to many, and many to many configurations (sold individually)
- ■ 10 Independent RF channels ensure multiple transceivers can be used in smaller environments without interference
- ■ Low power requirement allows for a hassle-free installation
Technical specifications — IRX-BI150 | Bi-directional Wireless IR Extender, Transceiver
- Model
- IRX-BI150
- AV Interface
- IR
- Maximum Distance
- 150m (492.12ft)
- IR Support
- 20~60KHz
- Transmission Protocol
- 866MHz RF
- Transmission Medium
- FSK Wireless
- Chipset
- AMICCOM A7129
- Special Features
- Bi-directional 1 - 1 and 1 - Many Extension
- Bi-directional Ports
- 3.5mm IR (Female)
- Power
- USB Powered
- Dimensions (approx.) WxDxH
- 30x13x63mm
- Housing Material
- Plastic
- Net Weight
- 0.07kg
- Operating Temperature
- -40°C - 85°C (-40°F - 185°F)
- Storage Temperature
- -55°C - 125°C (-67°F - 257°F)
- Humidity
- 10-85% RH (non-condensing)
- Power Requirements
- 5V 0.5A
- Warranty
- 12 months
- Certification
- CE · FCC · RoHS
- OEM / ODM
- Supported
DOWNLOAD — IRX-BI150 | Bi-directional Wireless IR Extender, Transceiver
Datasheets, drivers and firmware for this model are not published yet. Contact our team and we will send the files you need.
