PCIE-10GUSB1C1A| 10Gbps PCIE Card (1A+1C)
No.PCIE-10GUSB1C1A
Tittron PCIE-10GUSB1C1A PCIe USB 3.2 Gen 2 expansion card installs in a PCIe x4 slot on desktop PCs, delivering one 10Gbps USB-A port and one 10Gbps USB-C port for high-speed peripherals, external SSDs and NVMe enclosures. Powered by the ASMedia ASM3142 host controller with PCIe 3.0 x2 lanes and Multiple INs support. Compatible with Windows and Linux, backward compatible with USB 3.0 and USB 2.0 devices.
Buyer login — pricing, stock and order history
Information about USB 3.0, 3.1 & 3.2
- USB 3.0, USB 3.1 and USB 3.2 devices are cross-compatible via USB Type-A or Type-C.
- USB 3.0, USB 3.1 Gen 1, USB 3.2 Gen 1: up to 5 Gbps.
- USB 3.1 Gen 2, USB 3.2 Gen 2: up to 10 Gbps.
Incoterms® 2020 Applies to all Tittron B2B orders.
Overview — PCIE-10GUSB1C1A| 10Gbps PCIE Card (1A+1C)

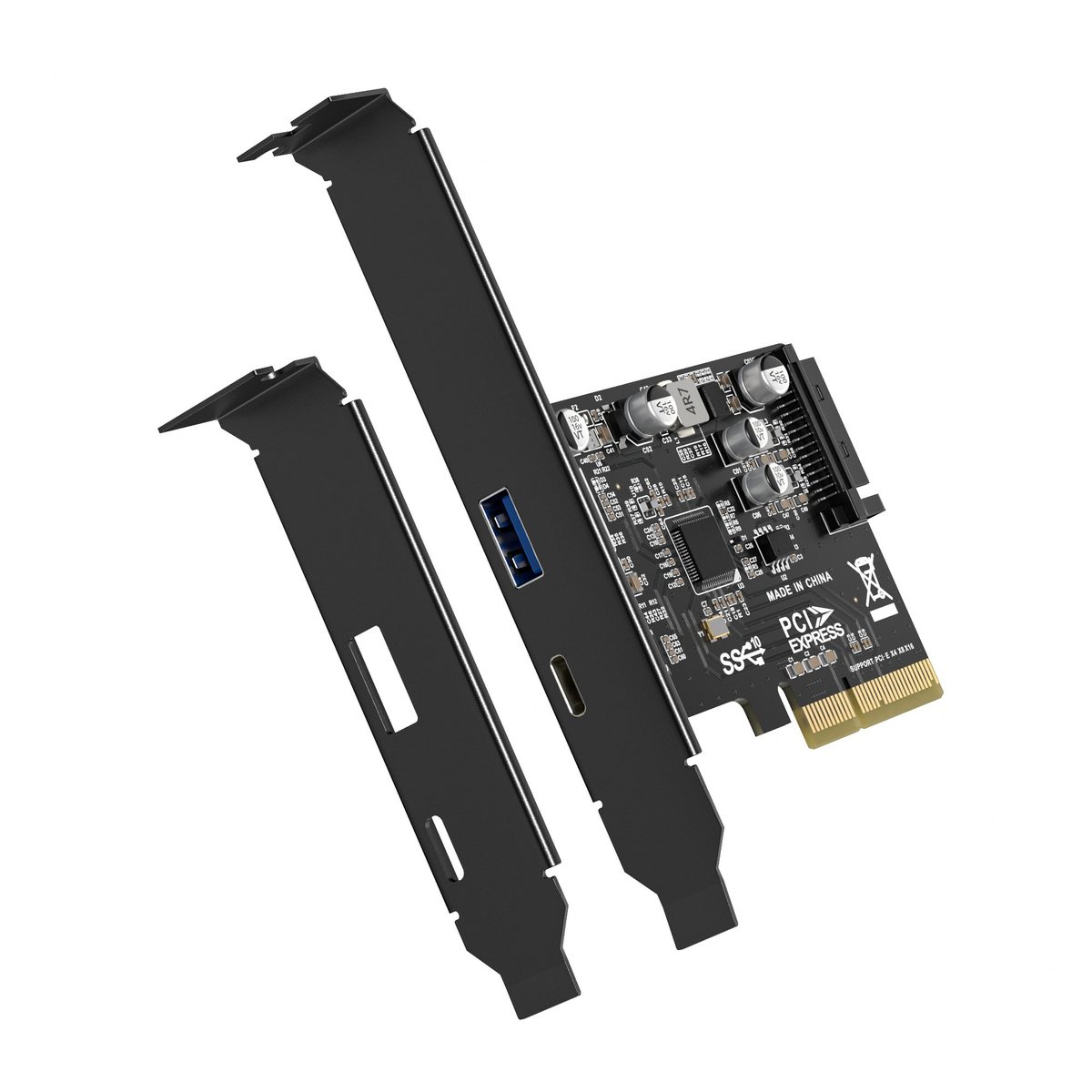

The Tittron PCIE-10GUSB1C1A PCIe USB 3.2 Gen 2 expansion card installs in a PCIe x4 slot on desktop PCs, delivering one 10Gbps USB-A port and one 10Gbps USB-C port for high-speed peripherals, external SSDs and NVMe enclosures. Powered by the ASMedia ASM3142 host controller, it uses PCIe 3.0 x2 lanes with Multiple INs support to reduce bandwidth loss when connecting multiple devices or USB hubs. This card is a great upgrade for workstations and data storage setups, compatible with Windows and Linux operating systems, and backward compatible with USB 3.0 and USB 2.0 devices.
Please note the USB-A and USB-C ports share a combined total 10Gbps bandwidth. Windows 8 and newer editions support automatic driver installation. Do not confuse it with ASM1142 controller, which offers different performance specifications.
What stands out — PCIE-10GUSB1C1A| 10Gbps PCIE Card (1A+1C)
- ■ Adds 1× USB-A (10Gbps) and 1× USB-C (10Gbps) via PCIe x4 slot
- ■ Powered by ASMedia ASM3142 controller, PCIe 3.0 x2 lanes with Multiple INs support
- ■ Shared total 10Gbps bandwidth for high-speed peripherals and storage
- ■ Ideal for external SSD, NVMe enclosure and workstation storage upgrades
- ■ Wide OS compatibility: Windows and Linux; auto driver install on Windows 8+
- ■ Backward compatible with USB 3.0 and USB 2.0 devices
Technical specifications — PCIE-10GUSB1C1A| 10Gbps PCIE Card (1A+1C)
- Hardware
- Bus Type: PCI Express x4 slot or higher (x8, x16)
- Card Type: Standard profile, low-profile bracket included
- Chipset ID: ASMedia - ASM3142
- Performance
- Maximum Data Transfer Rate: 10Gbps (USB 3.2 Gen 2 / USB 3.1 Gen 2)
- UASP Support: Yes
- Connector(s)
- Number of Ports: 1 × USB-A (10Gbps) + 1 × USB-C (10Gbps); data only, no DP Alt Mode or USB PD
- Optional Power: 15-pin SATA power connector
- Industry Standards
- USB 3.2 Specification: Rev. 2.0
- USB Specification: Rev. 2.0
- PCI Express Base Specification: Rev. 3.0
- Intel xHCI Specification: Rev. 1.1
- UASP: Rev. 1.0
- Physical Characteristics
- Color: Black
- Material: Steel
- Product Dimensions: 4.8 in (12.2 cm) × 3.1 in (80.0 mm) × 0.7 in (18.0 mm)
- Product Weight: 1.6 oz (45.0 g)
- Environmental
- Operating Temperature: 0°C to 70°C (32°F to 158°F)
- Storage Temperature: -20°C to 85°C (-4°F to 185°F)
- Humidity: 20~80% RH
- Notes
- Note: PCIe bus speed limits throughput; PCIe Gen1 max 2.5Gbps, PCIe Gen2 max 5Gbps, PCIe Gen3 max 10Gbps. USB-A and USB-C ports share a combined total 10Gbps bandwidth.
- Warranty: 24 months
- Certification: CE · FCC · RoHS
- OEM / ODM: Supported
DOWNLOAD — PCIE-10GUSB1C1A| 10Gbps PCIE Card (1A+1C)
Datasheets, drivers and firmware for this model are not published yet. Contact our team and we will send the files you need.
GET A QUOTE
Frequently asked questions
Are both USB-A and USB-C ports 10Gbps?
Yes. Both ports support up to 10Gbps speed. The two ports share a combined total 10Gbps bandwidth. If you use both ports simultaneously, the total throughput will be distributed between connected devices.
What PCIe slot do I need for this card?
It fits into a PCIe x4, x8 or x16 slot. The card runs on PCIe 3.0 x2 lanes.
What operating systems are supported?
Windows and Linux. Windows 8 and above support automatic driver installation. It is backward compatible with USB 3.0 and USB 2.0 devices.
What controller chip does this expansion card use?
It uses ASMedia ASM3142 host controller. Please do not confuse it with ASM1142 which has different performance.
Can I connect external SSD or NVMe enclosure?
Yes. This card is ideal for external SSDs, NVMe enclosures and other high-speed USB peripherals, great for workstation and storage upgrades.
Do I need to install drivers manually?
No manual driver installation required for Windows 8 and newer. For Linux, native kernel support is available.
